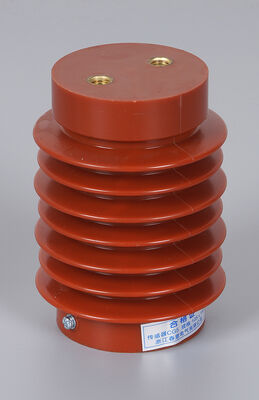

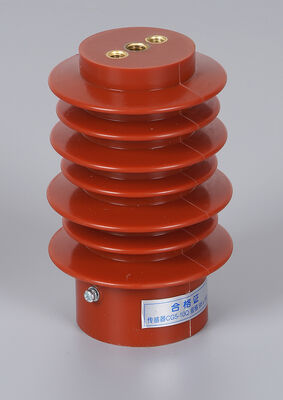

11kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF

  • 11kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF
  • 11kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF
  • 11kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF
  • 11kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF
Luogo di origine Wenzhou
Marca QIUPU
Certificazione IEC
Numero di modello 90X140
Quantità di ordine minimo 180 pezzi
Imballaggi particolari Cartoni
Tempi di consegna 7 giorni
Termini di pagamento T/T, Western Union
Capacità di alimentazione 100.000 pezzi/mese

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale Resina epossidica Colore Rosso
Distanza di dispersione 240 mm Tensione di tasso 11kv
Tensione di frequenza 42kv Resistenza alla flessione 10 kN
Capacità 20-125pF
Lasciate un messaggio
Descrizione di prodotto

11kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF






Advantages for  insulators

1. Small size ,light weight
2. Excellent anti-pollution performance
3. Good aging resistance and anti-pollution performance
4. Easy to installation and transportation
5. Not brittle,and reduce the purchasing quantities for spare parts


Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Local discharge (pc) ≤10
Dispute bend (N) ≥10000
Capacity 125pF





            We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . The load switch adopts the pressure gas internal blowing structure, the arc extinguishing ability is strong, and does not affect the interphase and ground insulation, both the dynamic and static contacts have the arc contact, greatly increased the number of breakdowns.11kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF 011kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF 111kV Epoxy Resin Support Insulator with Capacitor from 20pF to 125pF 2
